- 單位名稱： 保定市中和機械設備制造有限公司
- 手機號碼： 17325290682

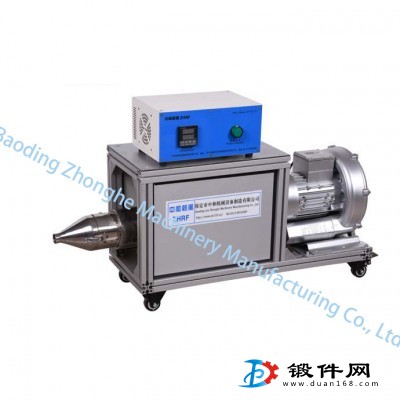

- 產品名稱： Industrial hot air dryer
- 材質型號： wulin
- 供應地址： 河北保定清苑區發展西街320號
HWIR200G-5 high-pressure industrial hot air blower (high-pressure fan, power adjustable, digital display temperature, integrated design) suitable for food, pharmaceutical, electronics, printing, spraying, cleaning and other industries used in heating, drying and dehumidification, especially suitable for Pipeline Drying heating. Suitable for single operation or assembly line use, high thermal efficiency, uninterrupted continuous work, durable, accurate in temperature control.
Characteristic:
main features
Integrated design
The design of the control system, heating system and blowing system is especially suitable for heating and drying pipes.
Temperature control system
A solid state relay is used to control the power output and control the temperature, and the output is stable. Digital display temperature.
High wind pressure
The standard configuration is 250W high pressure fan.
Heat insulation
Double layer heat preservation.The strong machine casing makes it safe and reliable,can maintain long-term high temperature work.
Digital display temperature regulation
The air outlet is equipped with a temperature sensor, so that the machine can adjust potentiometer to achieve temperature regulation according to the work needs. It can work continuously for 24 hours at high temperature.
High heat exchange efficiency
Ingenious design of wind tunnel let the air uniform through the inside and outside of the helical heating wire.Heat exchange near 100%,the loss of wind pressure is less.
Security
The machine does not produce exhaust gas, and is environmentally friendly. It can operate continuously for 24 hours throughout the year.
Parameter table:
Classification | Item | Parameter |
Size

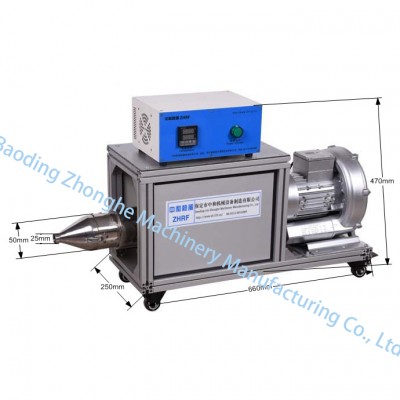

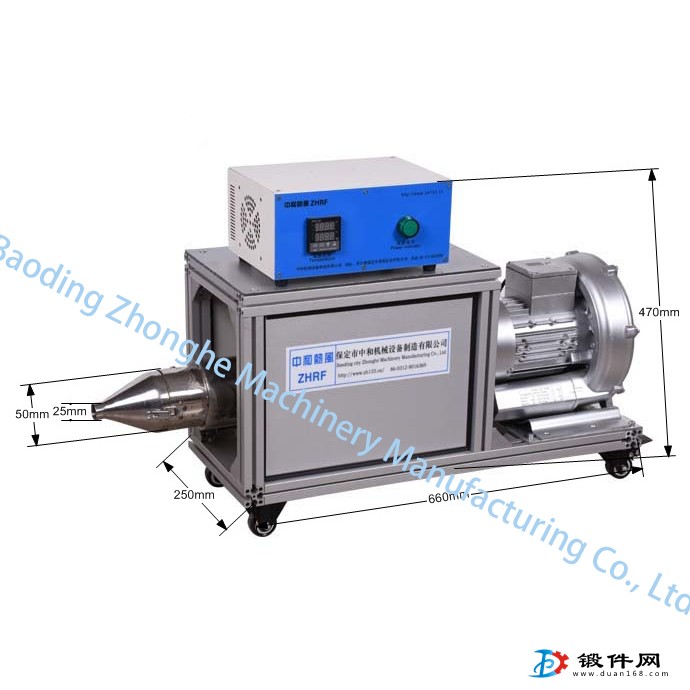

| Overall machine size（L×W×H) | See picture |
Outlet diameter | 50mm，25mm | |
Inlet diameter | 50mm | |
Insulation layer | Material | Double layer heat preservation |
Heater | Name | Electric hot wire |
Heater power | 2KW | |
Heating wire life | 10000 hours | |
Power regulation | Intelligent temperature adjustment | |
Air intake | Blower | 250W High pressure blower |
Maximum wind volume | 48m3/h | |
Full pressure | 12000pa | |
Hot air vent | Diameter | 25mm |
The maximum air volume of the outlet | 42m3/h | |
Maximum temperature of outlet | 100℃ | |
Power demand | Power demand | 220V |
Power | 2300W | |
Weight | Weight | 15KG |
